GS1 Digital Link QR Code Implementation: The Technical Guide

Most guides about GS1 Digital Link QR code implementation explain what it is at a high level, then stop before the part that actually matters: how to build a URI that works at checkout, passes conformance validation, and survives contact with real scanner infrastructure. That gap is where implementations break. Here is what you need to build a GS1 Digital Link QR code that works correctly, plus the five structural mistakes that produce codes which scan fine in a lab and fail in production. **GS1 Digital Link is not a new type of QR code. It is a standardized URI structure that turns any QR code into a dual-purpose identifier, readable by both checkout scanners and consumer smartphones from a single printed symbol.**

What GS1 Digital Link Actually Is

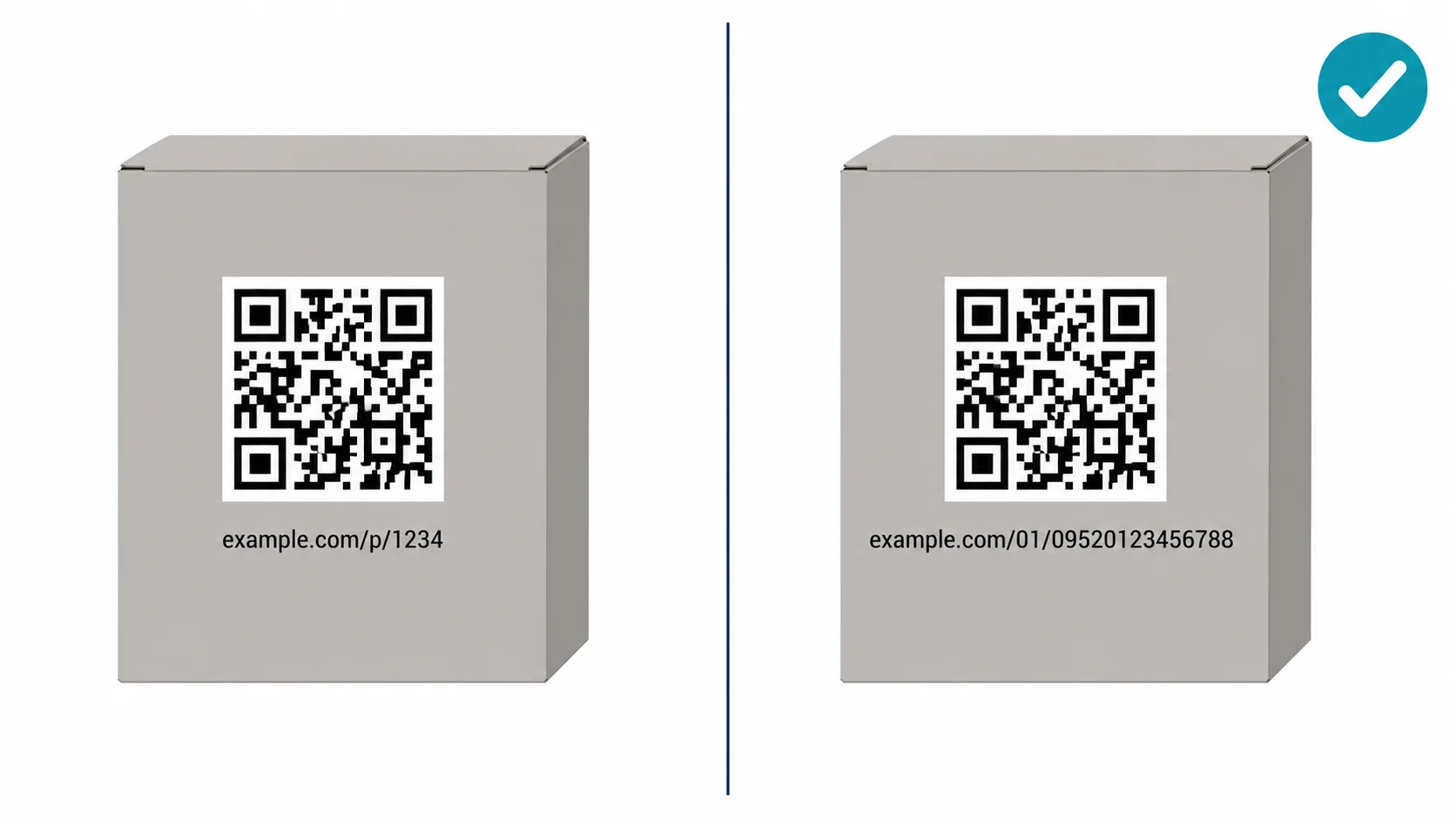

GS1 Digital Link is an international standard (ISO/IEC 18975) published by GS1, the global nonprofit that maintains supply chain identity standards including GTINs, GLNs, and SSCCs. The standard defines a URI syntax that embeds GS1 identifiers directly into a web URL path, making those identifiers both machine-readable and web-resolvable. A standard QR code encodes any arbitrary string: a URL, plain text, contact data. A GS1 Digital Link QR code encodes a URI that follows a specific structure. The same QR code can be scanned at a grocery checkout to retrieve GTIN-linked pricing and inventory data, and scanned by a consumer's smartphone to open a product detail page — without any modification between the two uses. The distinction matters for implementation. The QR code format itself (the black-and-white square) is identical to any other QR code. What differs is the string encoded inside it. If that string follows the GS1 Digital Link URI syntax, the code becomes a standards-compliant identifier. If it does not, it is just a QR code with a URL in it.

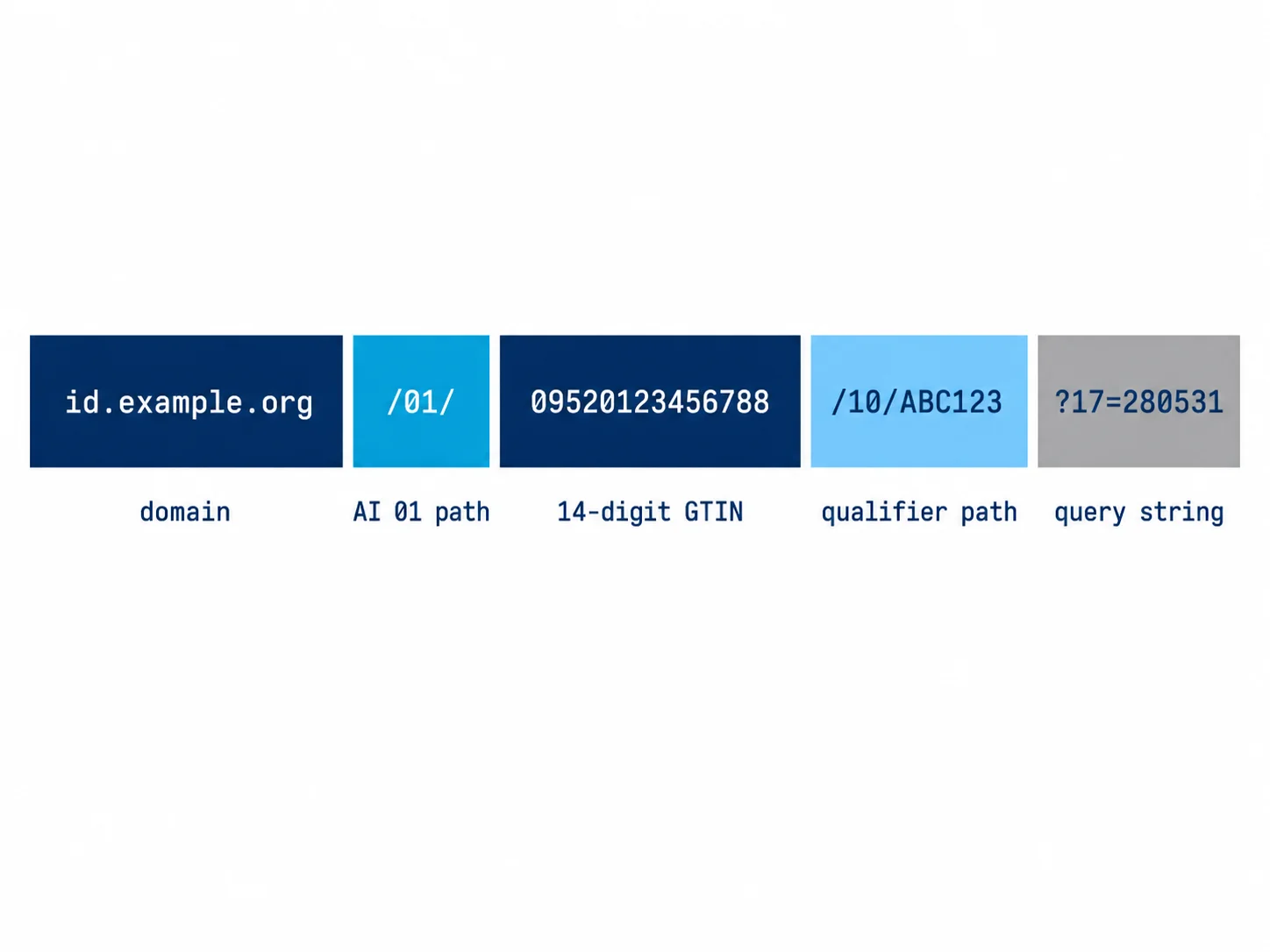

The GS1 Digital Link URI Structure

The canonical URI structure defined in GS1 Digital Link standard version 1.2.1 (February 2022) is:

https://{domain}/01/{14-digit-GTIN}[/{qualifier-AI}/{value}][?{attribute-AI}={value}]

Breaking this down:

• Domain — Can be id.gs1.org (GS1's global resolver) or any domain you operate a GS1-conformant resolver on. The standard is domain-agnostic.
• /01/ — The Application Identifier (AI) for GTIN. The forward slash before and after is required.
• 14-digit GTIN — Always 14 digits, zero-padded on the left. A 12-digit UPC (e.g., 614141123452) becomes 00614141123452 in the URI.
• Qualifier AIs (path segments) — Optional. Encoded in the URL path. Common qualifiers: /10/ (batch/lot), /21/ (serial number). Order follows GS1 AI concatenation rules.
• Attribute AIs (query string) — Optional. Encoded as query parameters. Common attributes: 17 (expiration date, YYMMDD format), 11 (production date).

A real-world pharmaceutical example with all fields:

https://id.gs1.org/01/05901234123457/10/BATCH-A/21/SN0000123?17=271231

This encodes:

• GTIN: 05901234123457
• Batch/Lot: BATCH-A
• Serial number: SN0000123
• Expiration date: December 31, 2027 (encoded as 271231 in YYMMDD format)

A retail consumer product — a can of coffee, say — might only need:

https://id.gs1.org/01/09780201379624

The resolver at id.gs1.org looks up that GTIN and redirects appropriately: to a product page for a consumer scan, or returns structured data for a machine scan.

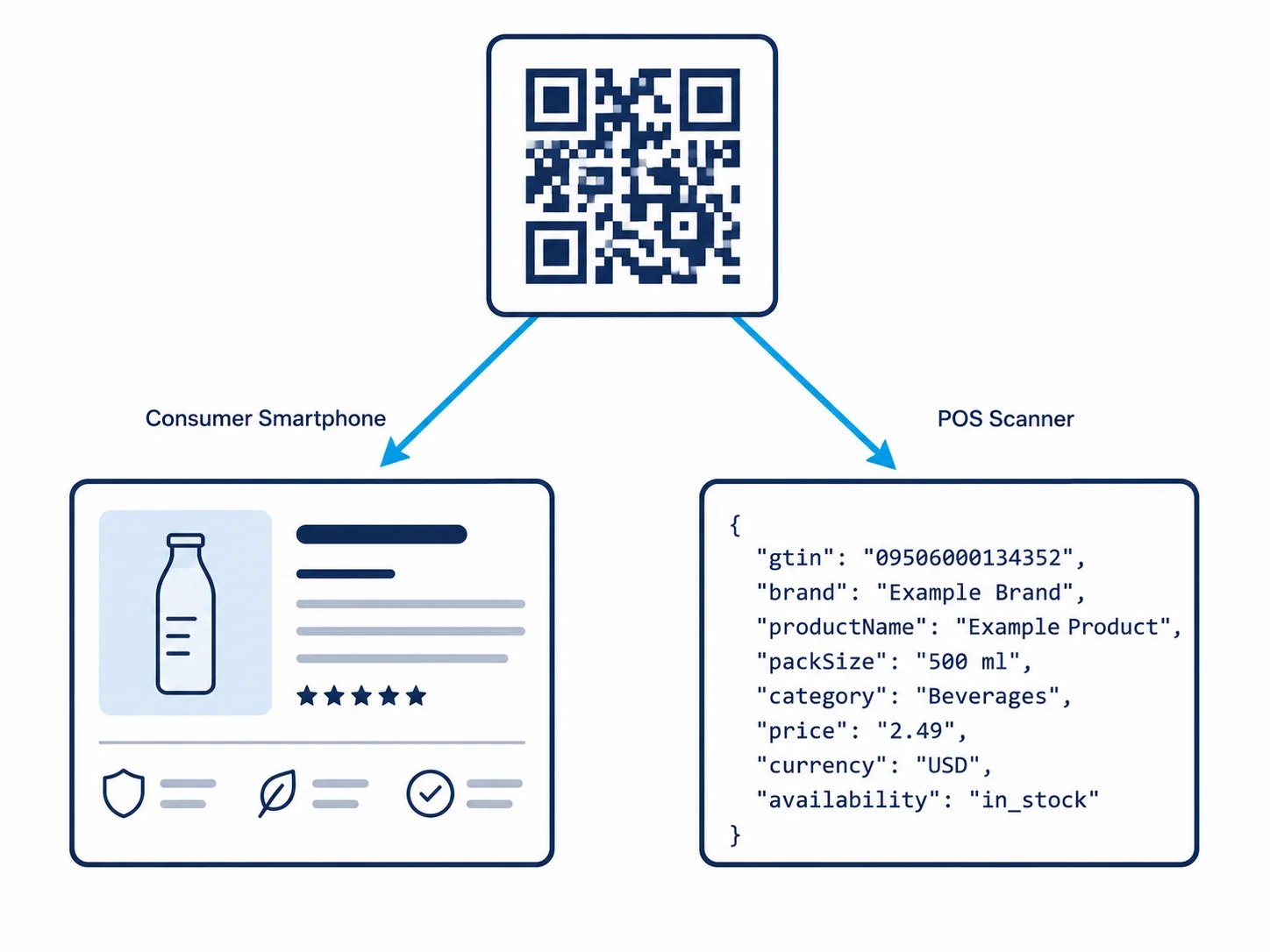

How the Resolver Works

The resolver is what makes GS1 Digital Link contextually aware. When a device scans the QR code, it sends an HTTP GET request to the resolver URL. The resolver reads the URI path (extracting the GTIN and any qualifiers), then uses request context — user agent, Accept headers, locale, or scanner-specific flags — to return the appropriate response. For a consumer smartphone:

1. Camera app scans QR, extracts URI: https://id.gs1.org/01/09780201379624
2. Browser sends GET request to id.gs1.org
3. Resolver identifies it as a browser request (HTML Accept header)
4. Resolver returns HTTP 307 redirect to the brand's consumer product page

For a pharmacy dispensing system:

1. Scanner reads QR, extracts same URI
2. System sends GET with Accept: application/ld+json or similar structured-data header
3. Resolver returns JSON-LD with product identity data, verification links, and regulatory status

The GS1 conformant resolver specification (available at ref.gs1.org) defines the exact response formats and link type vocabulary: gs1:pip for product information page, gs1:safetyInfo, gs1:recallStatus, and others. GS1 makes its resolver source code available as open-source software. Brands that want full control can run their own resolver, use a third-party managed resolver, or route through GS1's global instance at id.gs1.org.

Implementation Steps: From GTIN to Printed QR Code

Step 1: Obtain or Verify Your GTIN

A GTIN is the mandatory primary key. GTINs are issued by GS1 Member Organizations — in the US through GS1 US, in the UK through GS1 UK. If your products already carry UPC or EAN barcodes, you already have GTINs; you need to zero-pad them to 14 digits. GTINs purchased from third-party resellers are often non-compliant for GS1 Digital Link. The resolver at id.gs1.org validates GTIN prefix ownership. If your prefix is not registered to your company in the GS1 registry, the resolver cannot confirm brand ownership and cannot serve conformant responses.

Step 2: Determine Which Qualifiers You Need

The qualifiers you include are driven by your use case:

• Retail consumer engagement only: GTIN alone. URI ends after the 14-digit GTIN. Keeps the code short and the QR module density low.
• Retail with fresh/perishable inventory: GTIN + batch (/10/) + expiration (?17=). Allows store systems to track lot-level freshness.
• Pharmaceutical (EU FMD / US DSCSA): GTIN + lot (/10/) + serial (/21/) + expiry (?17=). Full four-component encoding for unit-level traceability.
• Logistics shipping label: SSCC-based URI using AI /00/ as the primary key instead of GTIN.

Encoding more qualifiers than necessary is one of the most common mistakes in the field. Each added qualifier increases URI length, increases QR code density, and ties the printed code to data that may change. Codes that encode expiry dates have a fixed shelf life — when the expiry date passes, the code still scans but returns stale qualifier data that may confuse conformant readers.

Step 3: Choose Your Resolver Strategy

Three options exist:

• GS1 Global Resolver (id.gs1.org): Works immediately for brands with registered GTINs. Limited customization of redirect targets without additional GS1 registry entries. Best for brands just starting with Digital Link.
• Third-party managed resolver: Services like Digimarc and Sato offer managed resolver infrastructure. You control redirect targets, link types, and analytics without running your own servers.
• Own resolver: Maximum control. GS1 provides open-source resolver software and a conformance test suite. Requires server infrastructure and ongoing maintenance. Right for large brands with dedicated engineering teams.

Step 4: Generate and Validate the URI

Before encoding into a QR code, validate the URI against GS1's Digital Link validator at ref.gs1.org/tools/gs1-digital-link-toolkit. The toolkit checks:

• GTIN structure and check digit
• AI ordering (primary key before qualifiers before attributes)
• Character set conformance for each AI's value
• Correct use of path vs. query string positions for each AI

If the URI fails validation, it will still encode into a QR code — the QR format has no awareness of the URI contents. The failure surfaces at the resolver, in scanner software that validates GS1 structure, or in conformance audits.

Step 5: Generate the QR Code at Correct Specification

GS1 recommends QR Code Model 2, Error Correction Level M (15% recovery) for most packaged goods. For pharmaceutical serialized codes where module density is high and print precision matters, Error Correction Level H (30%) is recommended. Minimum size for reliable scanning: 15mm x 15mm at 150 dpi. For retail environments where codes may be scanned at distance or in poor lighting, 20mm x 20mm or larger. Quiet zone: 4 modules on all sides, minimum. The QR code must encode the URI as UTF-8. Do not add any GS1 Application Identifier prefix string before the domain — the URI format makes the GTIN extractable without it.

Real-World Use Cases

Retail: The Sunrise 2027 Transition

GS1's Sunrise 2027 initiative requires POS systems in 48+ countries to accept 2D barcodes by the end of 2027. Walmart, Carrefour, Woolworths, and Albertsons have all published 2D-barcode acceptance roadmaps. Suppliers that cannot deliver scannable GS1 Digital Link QR codes face listing risk with their largest accounts. For retail, the key constraint is that the same code must checkout-scan correctly at existing POS infrastructure while also serving consumer engagement through the resolver. The GS1 Digital Link URI satisfies both simultaneously — existing GS1 Application Identifier parsing software extracts the GTIN from the URI path without any modification.

Healthcare: EU FMD and US DSCSA Compliance

The EU Falsified Medicines Directive requires unique identifier verification on prescription medicines. The US Drug Supply Chain Security Act requires unit-level traceability. Both require GTIN + lot + serial + expiry, the full four-component GS1 Digital Link encoding. A GS1 Digital Link QR code on a pharmaceutical pack satisfies both regulatory frameworks from a single symbol, and simultaneously allows pharmacists to scan the code to retrieve patient-facing product information through the resolver. For a deeper look at healthcare QR compliance requirements, see the QR Code HIPAA Compliance Guide. The EU Digital Product Passport regulation, entering phased enforcement from 2027, adds a fifth use case: consumers accessing sustainability and circularity data through the same code.

Logistics: Scan4Transport

The GS1 Scan4Transport (S4T) standard applies GS1 Digital Link URI syntax to logistics labels, using SSCC (Serial Shipping Container Code, AI 00) as the primary key. A pallet label encoded with a GS1 Digital Link URI allows logistics operators to scan with any 2D-capable reader and immediately access shipment documentation, chain of custody records, and customs data — without proprietary scanner software or EDI lookup.

Five Pitfalls That Break Production Deployments

Pitfall 1: Incorrect GTIN Padding

Every GTIN in a GS1 Digital Link URI must be exactly 14 digits, zero-padded on the left. A 12-digit UPC like 614141123452 must appear as 00614141123452. Generating the code without padding produces a URI that fails AI parsing in conformant scanners, even though the QR code scans and the browser opens correctly. The resolver may accept it, but the code fails standards compliance audits.

Pitfall 2: Deprecated Convenience Alphas

Early versions of the standard allowed named aliases: /gtin/ instead of /01/, /lot/ instead of /10/. These "convenience alphas" were removed from GS1 Digital Link 1.2.1 and will not appear in future versions. Any implementation using them produces non-conformant URIs that fail validation. If your implementation vendor's code generator still outputs /gtin/ paths, require them to update.

Pitfall 3: Over-Encoding Mutable Data

Encoding promotion codes, campaign identifiers, or current-season marketing data in the GS1 Digital Link URI path locks that data into the printed symbol. When the promotion ends, every printed package carries a URI with stale qualifier data. Use the resolver to serve context-appropriate content. The URI should encode stable identity data only.

Pitfall 4: Skipping Conformance Testing

GS1 provides a Digital Link Toolkit at ref.gs1.org that validates URI structure. Many implementations skip this step, assuming that if the QR code scans and the page opens, it is correct. It is not. Conformance testing catches GTIN check-digit errors, AI ordering violations, and character set problems before they reach print runs. At scale (millions of packages), a conformance error requires a packaging recall. Testing costs nothing.

Pitfall 5: Short-Link Redirect Layer on Top of the URI

Some implementations route the GS1 Digital Link URI through a URL shortener or redirect service: the QR code encodes https://bit.ly/xyz which redirects to https://id.gs1.org/01/00614141123452. This breaks everything. The short link is not a GS1 Digital Link URI. Conformant scanners cannot extract structured identifier data from a redirect. POS systems that parse the scanned string for GTIN data receive a short URL with no parseable AI structure. Use the GS1 Digital Link URI directly.

When GS1 Digital Link Is Not What You Need

GS1 Digital Link is the right choice if your product requires POS checkout integration, regulatory traceability, or supply chain visibility that relies on GTIN-structured data. It is not the right choice for every QR code use case. Restaurant menus, event registrations, business cards, promotional landing pages — none of these need GS1 Digital Link. A standard dynamic QR code pointing to a URL gives you redirect flexibility without the implementation complexity of resolver infrastructure, GTIN registration, and AI ordering rules. Think of it this way: GS1 Digital Link is a supply chain identity standard that happens to use QR codes. Standard QR codes are a communication format that happens to be convenient for consumer engagement. Mixing them up produces either unnecessary complexity or non-compliance. For generating standard dynamic QR codes without supply chain requirements, QR Nova's generator creates codes that never expire and require no subscription, appropriate for the majority of small business and marketing use cases. For GS1 Digital Link, you need a GTIN, a resolver, and a conformant URI — that infrastructure is separate from general-purpose QR generation.

How to Verify a GS1 Digital Link QR Code

Before printing at scale, run these three checks:

1. URI structure validation: Paste the URI into the GS1 Digital Link Toolkit at ref.gs1.org/tools/gs1-digital-link-toolkit. It confirms GTIN check digit, AI ordering, qualifier positions, and character set conformance.
2. Resolver resolution test: Scan the QR code with a standard smartphone camera and confirm it resolves to the correct consumer page. Then test with a GS1 conformant resolver test tool (available in the GS1 Digital Link Toolkit) to confirm structured data responses.
3. POS scan simulation: Use GS1's scan engine test (or a compatible point-of-sale emulator) to confirm the GTIN is correctly extracted from the URI path. This is the test that matters for Sunrise 2027 compliance.

The Business Case: One Code for Every Purpose

Before GS1 Digital Link, brands running multiple compliance, supply chain, and consumer engagement programs typically printed multiple codes or separate barcodes for each function. A pharmaceutical pack might carry a 1D barcode for FMD verification, a 2D DataMatrix for lot and serial tracking, and a separate QR code for patient-facing product information. GS1 Digital Link collapses all three into one symbol. For brand owners, that is a direct reduction in label real estate, a simpler print production workflow, and a single point of truth for product identity across every supply chain touchpoint. According to GS1 data cited in its 2024 Sunrise 2027 preparedness report, fewer than 30% of consumer packaged goods companies had completed a GS1 Digital Link readiness assessment as of Q4 2024. The Sunrise 2027 deadline is not a distant planning horizon. For brands that need to update packaging artwork, run conformance testing, and onboard resolver infrastructure, the effective implementation window is now. For organizations beginning this process, the QR Nova features page covers the QR generation capabilities available for standard use cases, and GS1's implementation guideline (available at gs1.org/docs/Digital-Link/GS1_DigitalLink_Imp_Guide_i1.pdf) is the definitive reference for conformant GS1 Digital Link deployment.
